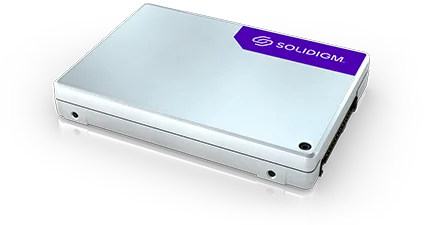

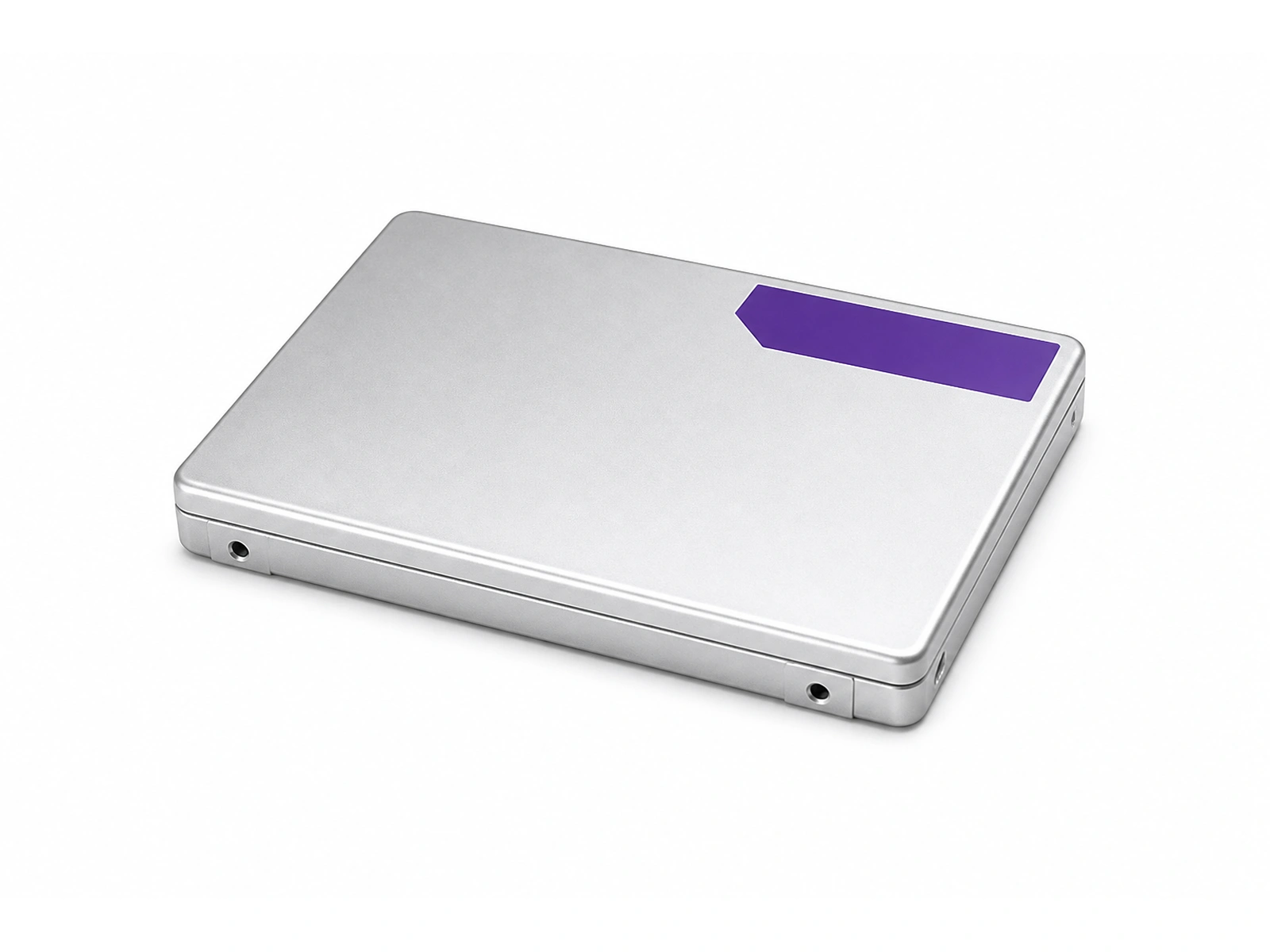

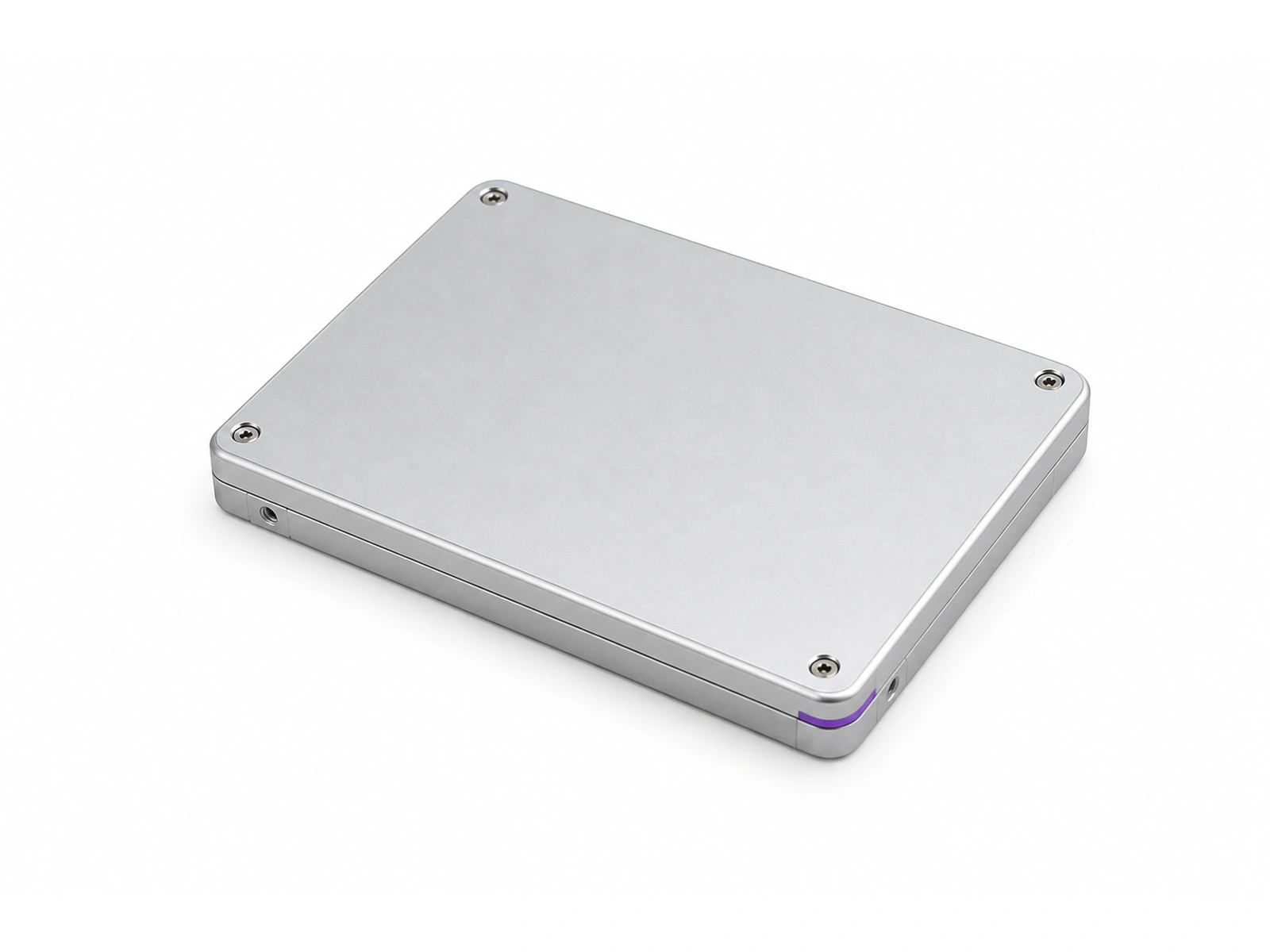

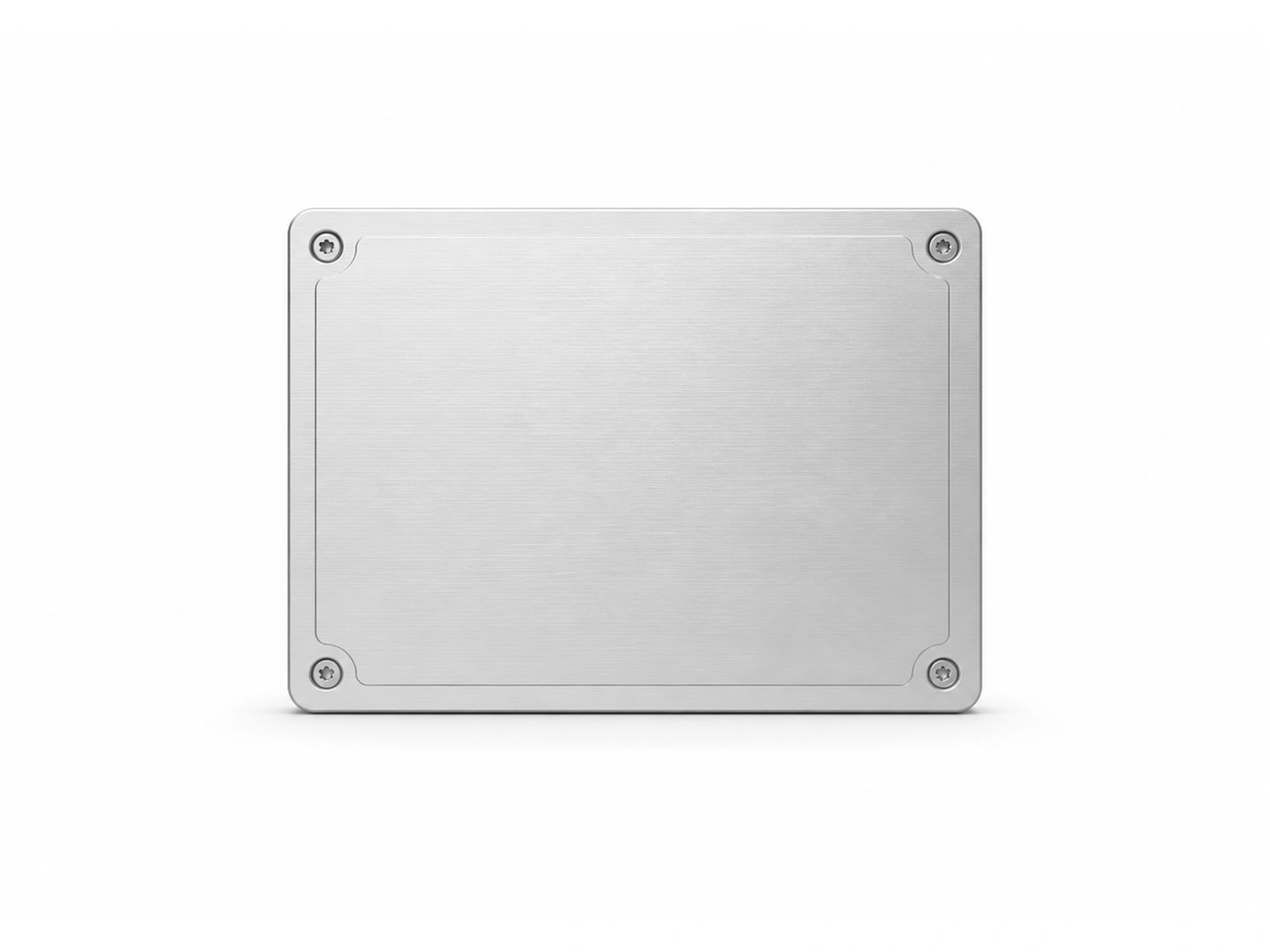

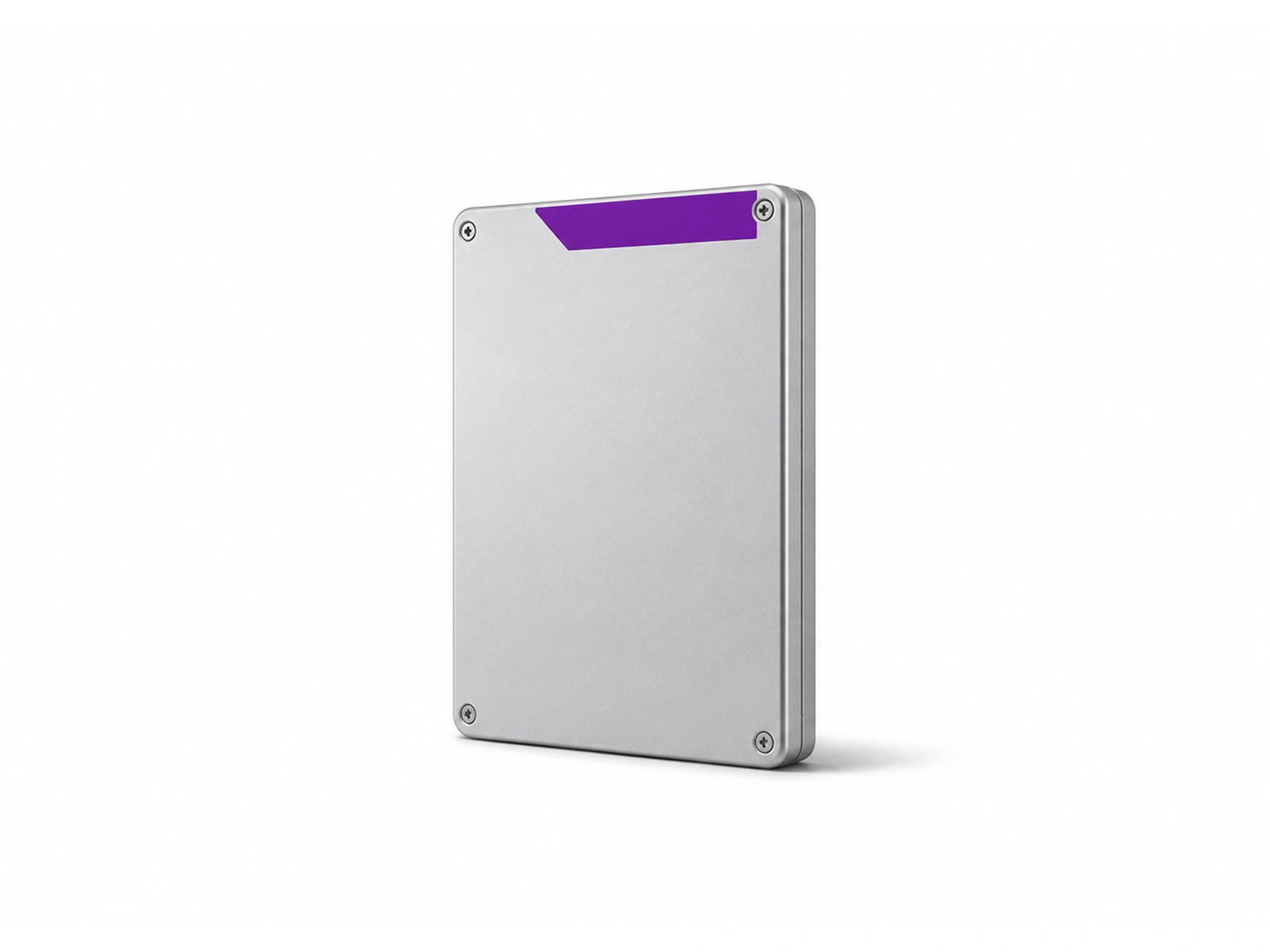

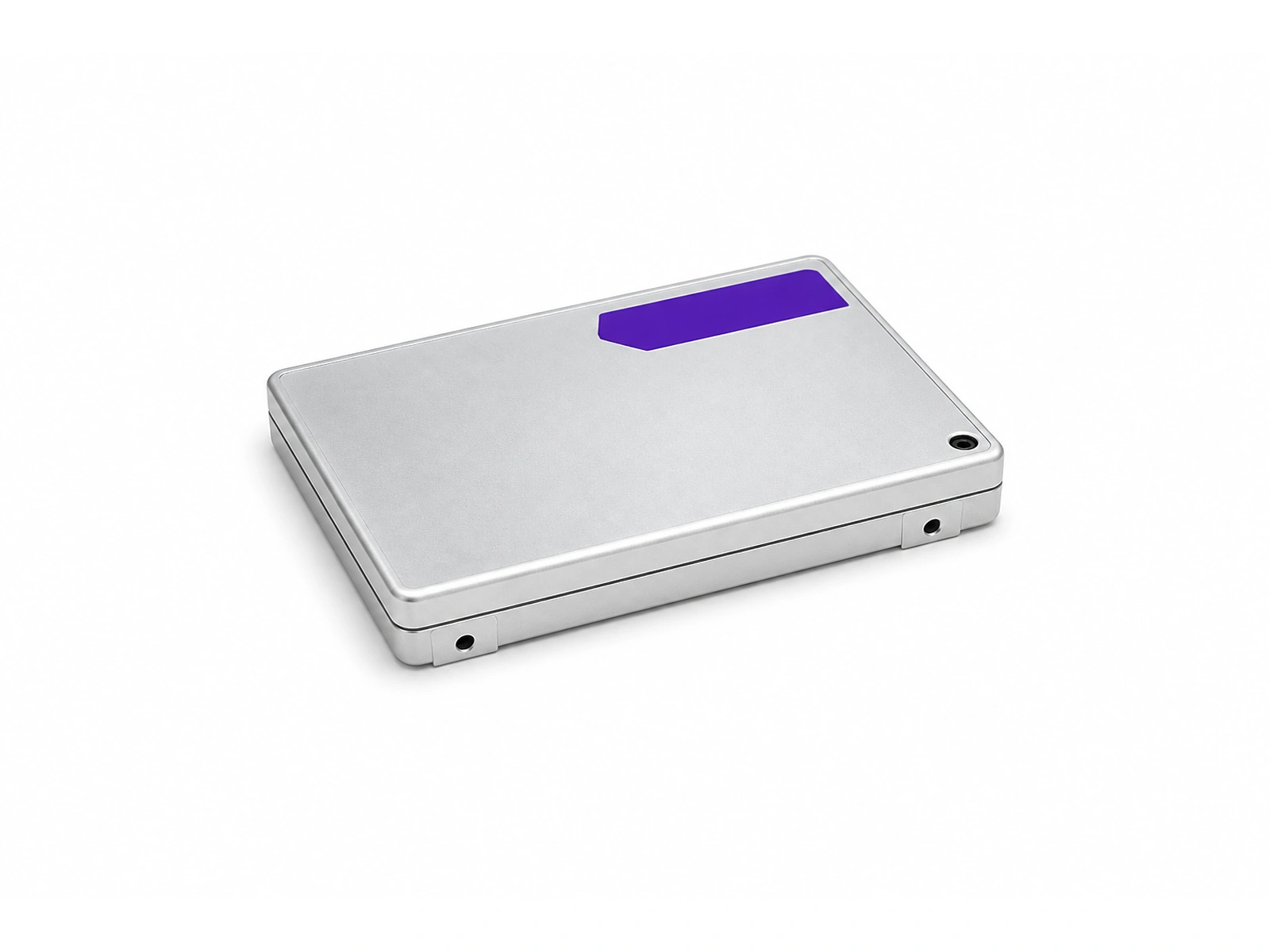

This gallery includes AI-generated series exterior reference images. The selected model, capacity, interface and specifications control.
D7-P5620
D7-P5620 is listed by ByteExo as enterprise SSD for enterprise procurement. The model number, capacity option and availability are confirmed by RFQ.
Request a quote
The form carries the selected model, capacity and page link into the request.
Key Features
Performance-optimized for enterprise
For solutions like AI/ML, database, and cloud applications, it provides substantial random and sequential read/writes, high random read IOPS, and sequential write throughput.
High endurance
Designed with the highest endurance and tested with zero tolerance protocol for data errors to deliver durable performance.
Fast response time
For highly random, mixed-workload environments requiring low latency for improved user experience, the D7-P5620 delivers consistently amazing response time.
Advanced Features Driving Performance
Features include PCIe VDM support, variable sector sizes, scatter gather with dataset management, advanced telemetry logs, dynamic namespaces, and device self-test, plus AES-256 and TCG Opal 2.0 security.
Solidigm™ Standard
Our solid-state drives are backed by a 5-year warranty that they will be significantly free from defects in material and workmanship, and will substantially conform to Solidigm's publicly available specifications.
Technical Specifications
| Model Number | SSDPF2KE016T11Z |
|---|---|
| Capacity | 1.6TB |
| Interface | PCIe 4.0 X4 |
| Protocol | NVMe |
| Form Factor | 2.5 inch U.2 |
| Total Bytes Written (TBW) | 8,908.8 TBW |
| Endurance (DWPD) | 3 DWPD |
| MTBF | 2,000,000 hours |
| Warranty | 5-year limited |
| NAND Flash | 144L TLC 3D NAND |
| Idle Power | 5W |
| Read Power | 13W |
| Random Read (4KB) | Up to 700K IOPS |
| Random Write (4KB) | Up to 200K IOPS |
| Sequential Read | Up to 5,300 MB/s |
| Sequential Write | Up to 1,900 MB/s |
| Operating Temperature | 0 °C to 70 °C |
| Power-Loss Protection | Supported |
Compare Models in This Series
4 models — comparing key specifications to help with model selection.
| Model | Interface | Form Factor | Sequential Read | Sequential Write | Capacity | DWPD |
|---|---|---|---|---|---|---|
| D7-P5520 | PCIe 4.0 X4 | 2.5 inch U.2 | Up to 5,300 MB/s | Up to 1,900 MB/s | 1.92TB–15.36TB | 1 DWPD |
| PM9D3a | PCIe 4.0 X4 | 2.5 inch U.2 | Up to 6,400 MB/s | Up to 1,400 MB/s | 960GB–15.36TB | 1 drive writes per day over 5years |
| D7-P5620 | PCIe 4.0 X4 | 2.5 inch U.2 | Up to 5,300 MB/s | Up to 1,900 MB/s | 1.6TB | 3 DWPD |
| PM9A3 | PCIe 4.0 X4 | 2.5 inch U.2 | Up to 6500 MB/s | Up to 1500 MB/s | 960GB–15.36TB | 1 DWPD |
DWPD means full-drive writes per day. PM9D3a's 1 DWPD value is stated under the five-year condition in the approved source.
