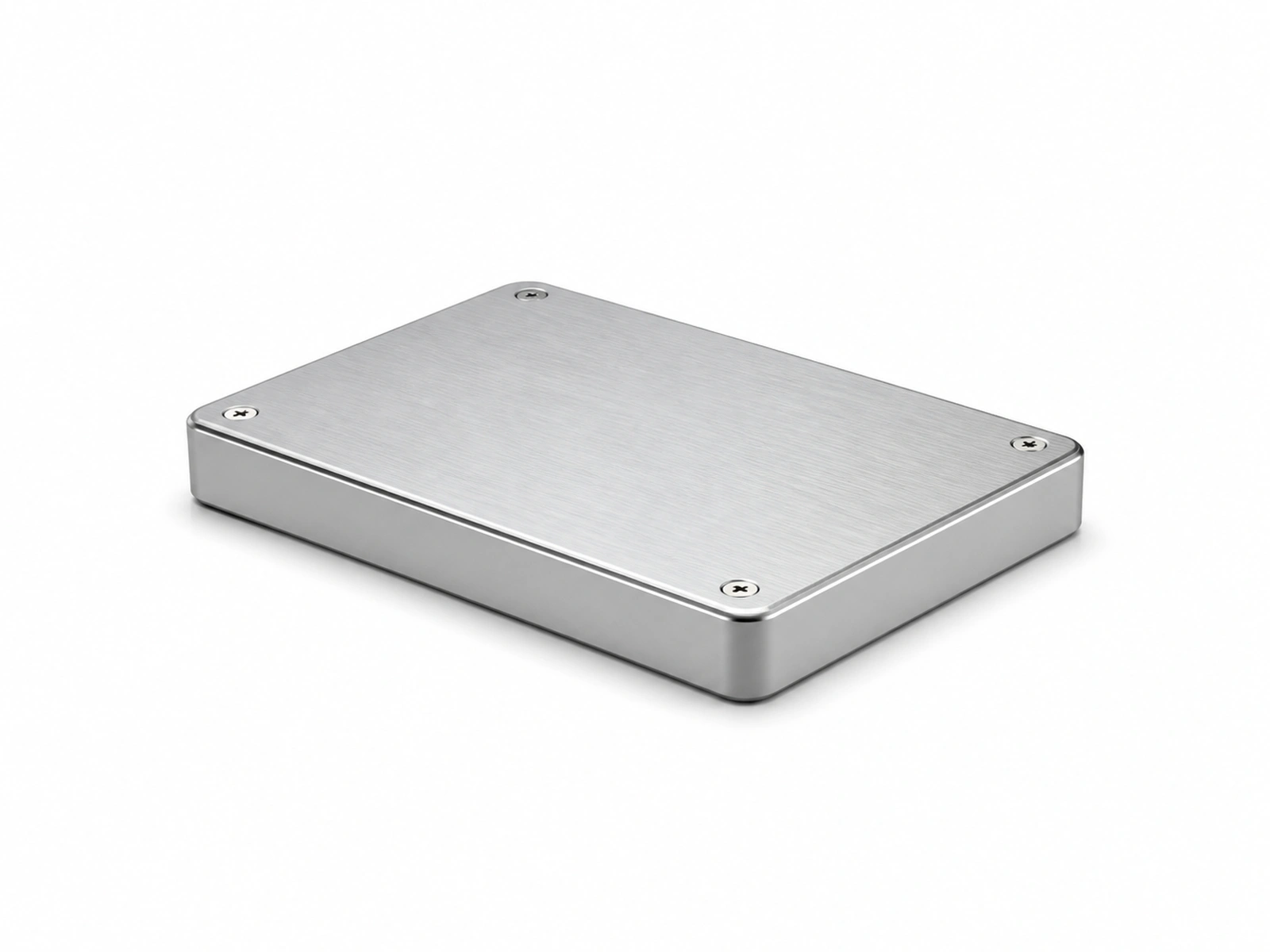

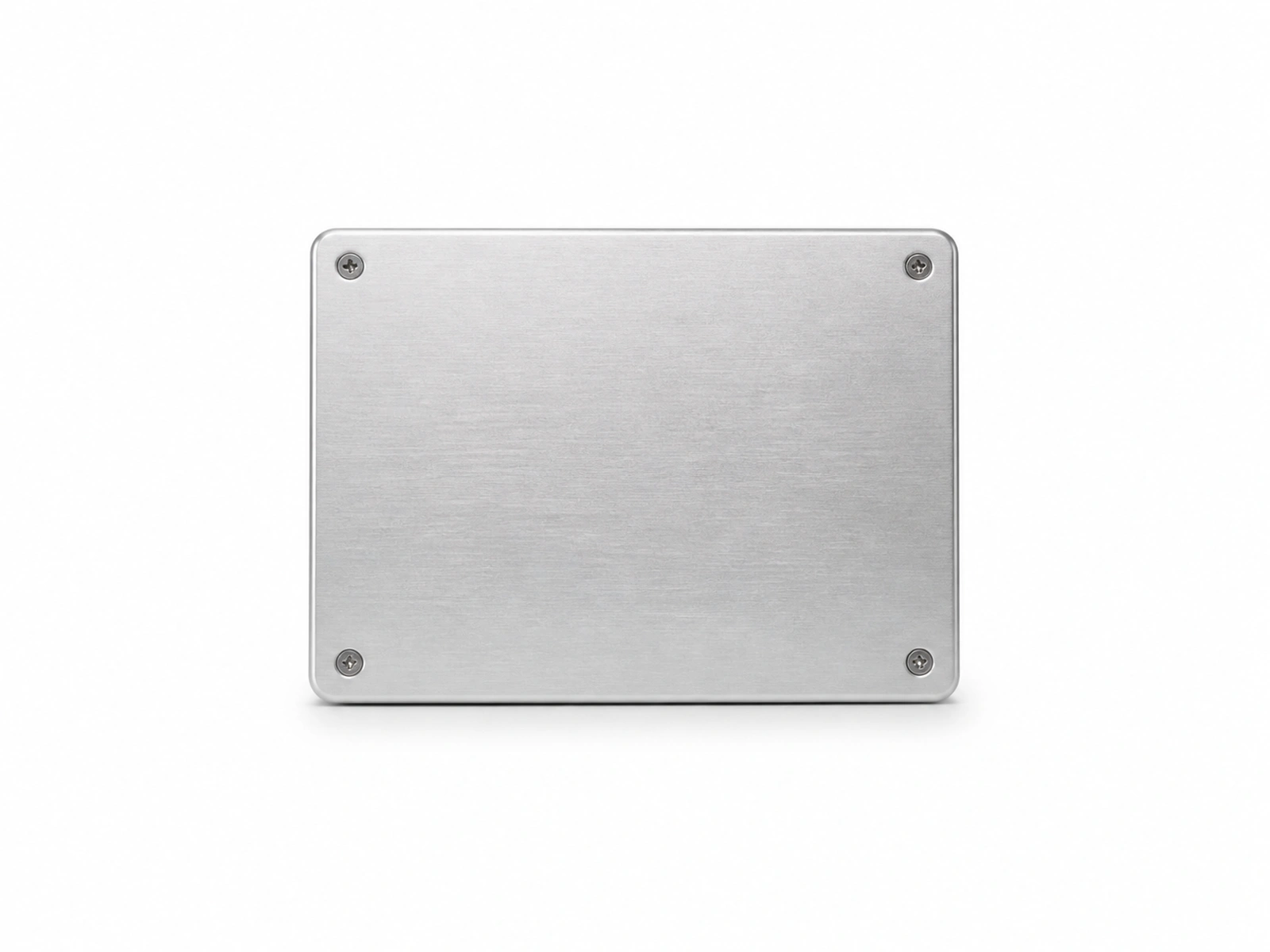

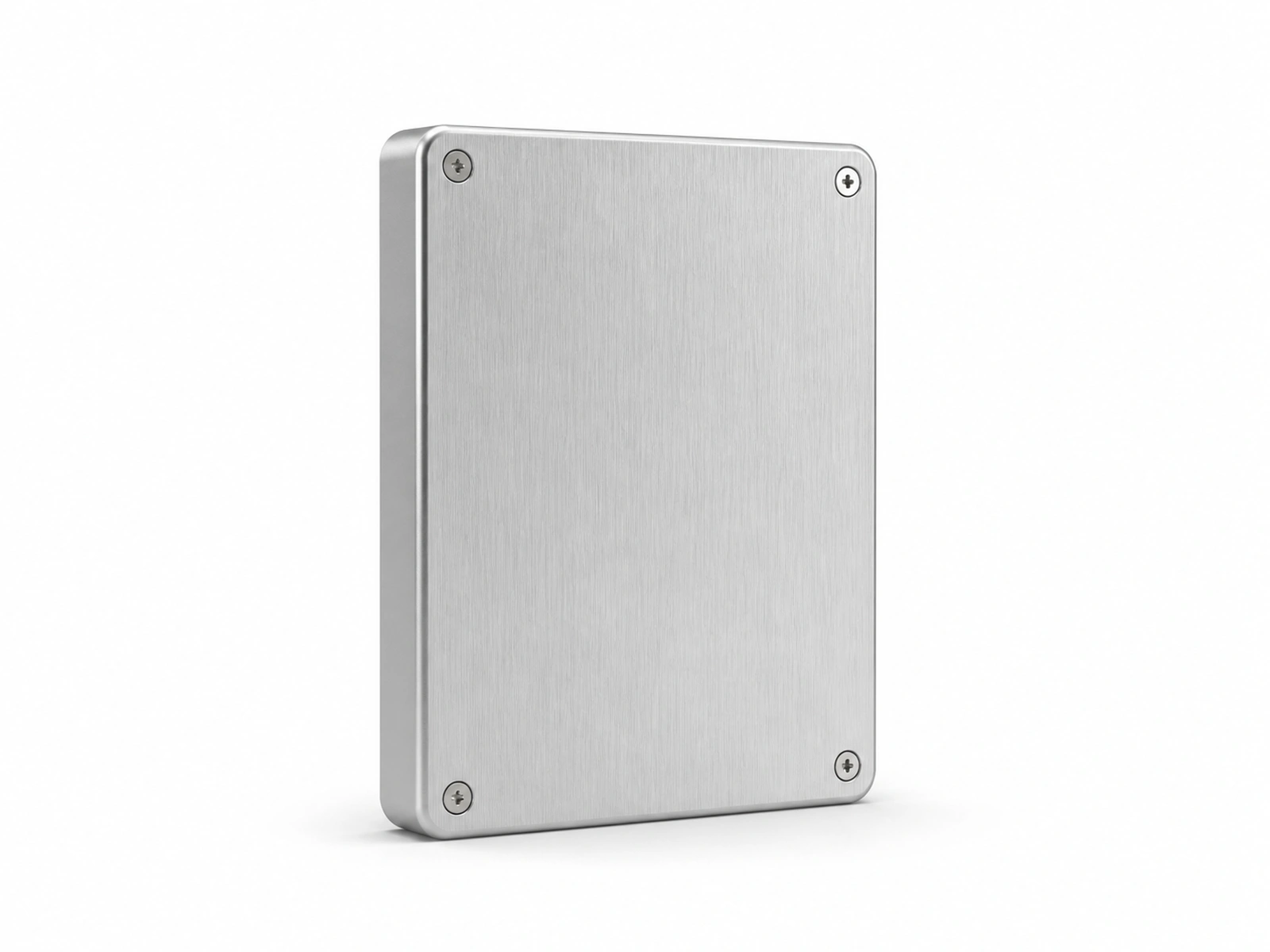

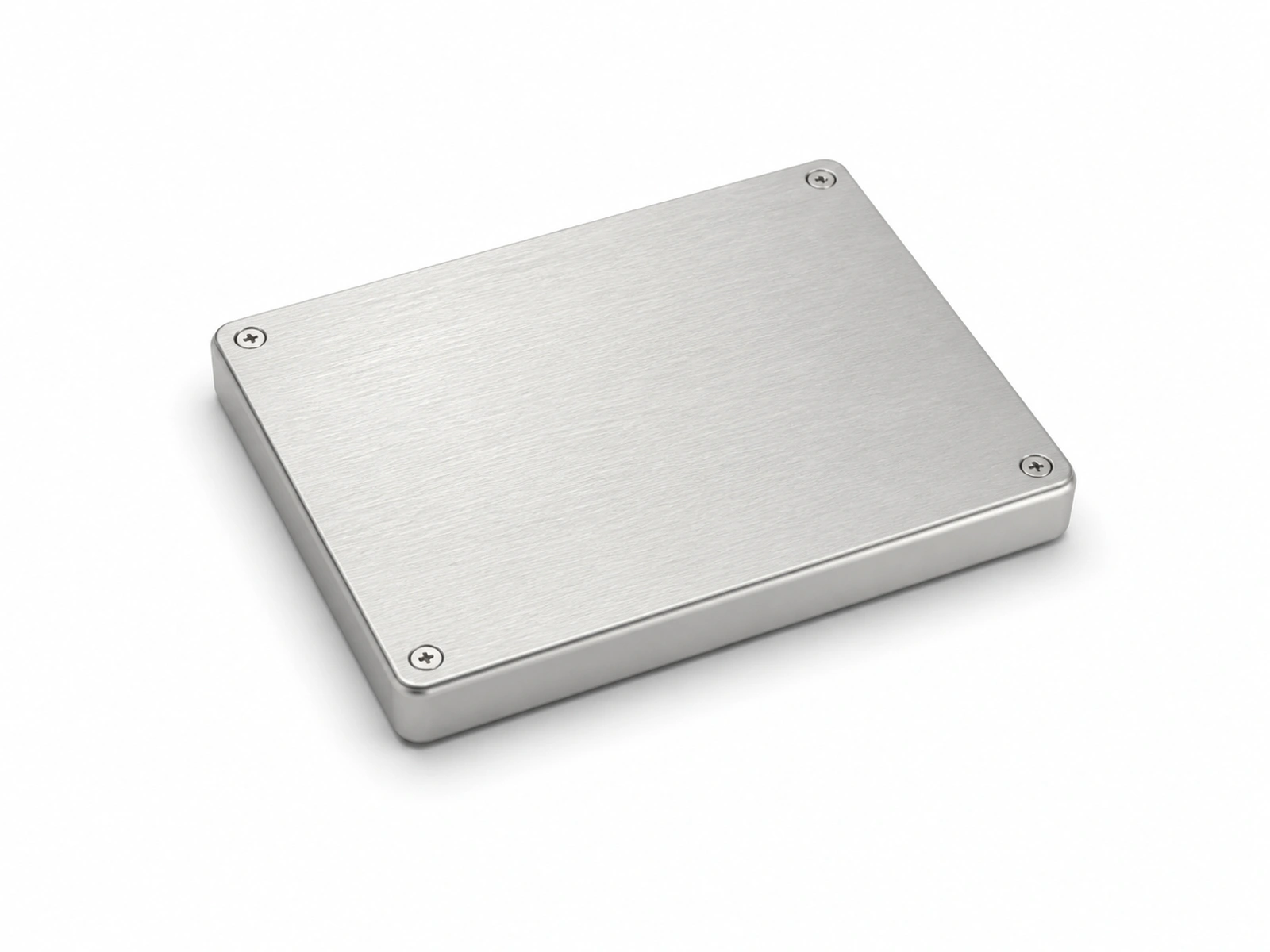

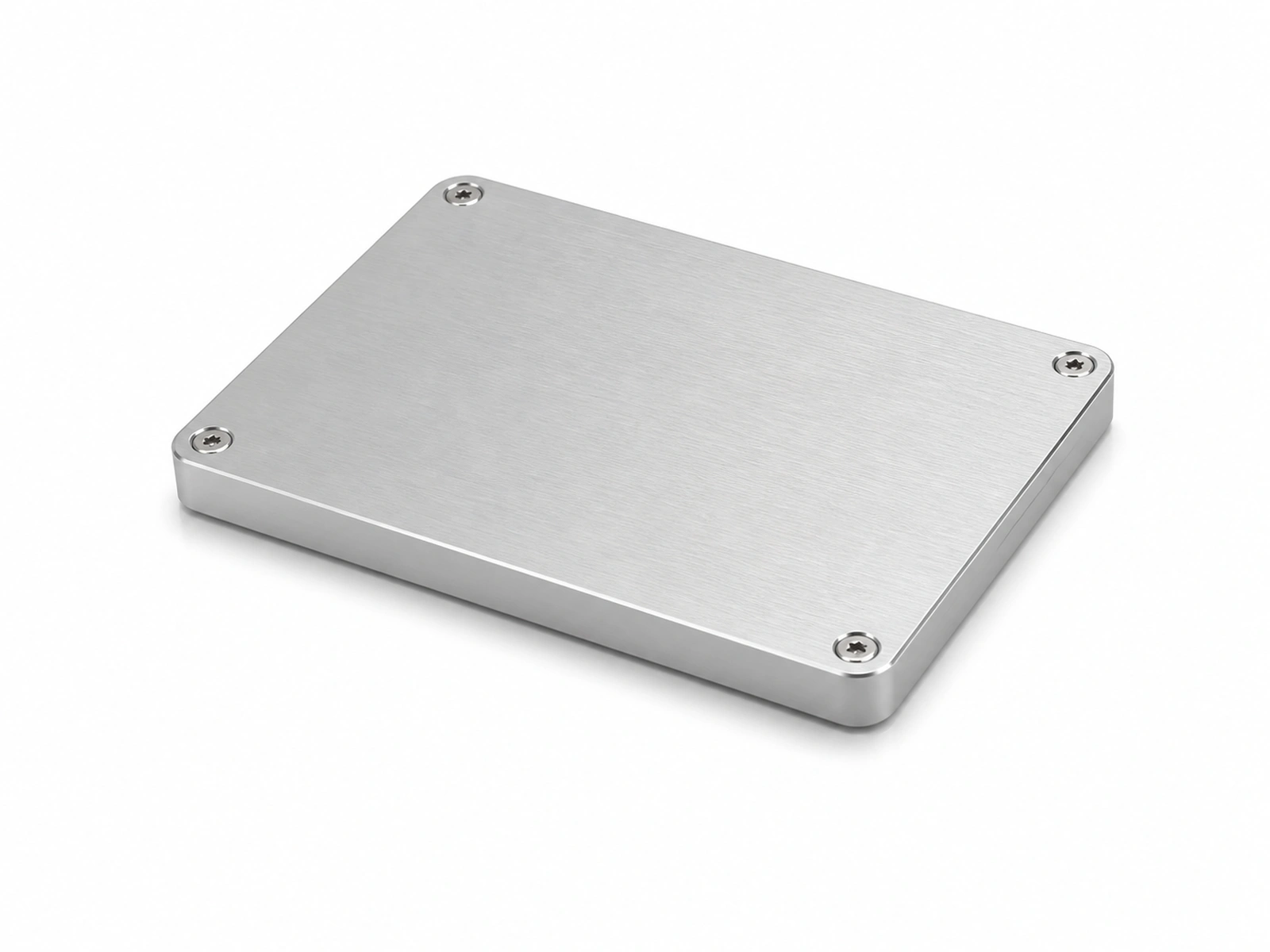

This gallery includes AI-generated series exterior reference images. The selected model, capacity, interface and specifications control.
D7-P5520
D7-P5520 is listed by ByteExo as enterprise SSD for enterprise procurement. The model number, capacity option and availability are confirmed by RFQ.
Request a quote
The form carries the selected model, capacity and page link into the request.
Key Features
Performance-optimized for enterprise
For solutions like AI/ML, database, and cloud applications, it provides substantial random and sequential read/writes, high random read IOPS, and sequential write throughput.
Low latency, consistent performance
For highly mixed and mainstream workload environments requiring low latency for improved user experience, the D7-P5520 delivers consistent, exceptional performance where it counts.
Industry’s Broadest PCIe 4.0 Portfolio

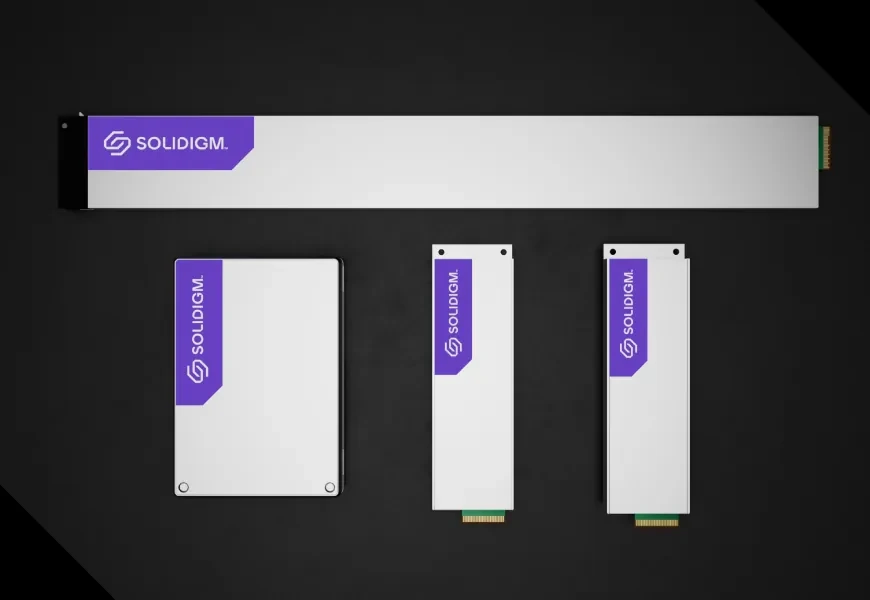

Form factor and capacity expansion enable modernization across 1U and 2U compute and storage servers. The Solidigm™ D7-P5520 comes in U.2, E1.L, and E1.S (9.5 mm & 15 mm) form factors.
Enable enterprise-grade workload
Accelerate cloud workloads, eCommerce, and general-purpose servers and databases with a compact storage footprint and lower power consumption.
Advanced Features Driving Performance
Features include PCIe VDM support, variable sector sizes, scatter gather with dataset management, advanced telemetry logs, dynamic namespaces, and device self-test, plus AES-256, and TCG Opal 2.0. FIPS 140-3 L2 security is only available for U.2 15mm form factor (1.92TB–15.36TB).
Technical Specifications
| Model Number | SSDPF2KX019T11Z |
|---|---|
| Capacity | 1.92TB |
| Interface | PCIe 4.0 X4 |
| Protocol | NVMe |
| Form Factor | 2.5 inch U.2 |
| Total Bytes Written (TBW) | 3,584 TBW |
| Endurance (DWPD) | 1 DWPD |
| MTBF | 2,000,000 hours |
| Warranty | 5-year limited |
| NAND Flash | 144L TLC 3D NAND |
| Idle Power | 5W |
| Read Power | 13W |
| Random Read (4KB) | Up to 700K IOPS |
| Random Write (4KB) | Up to 114K IOPS |
| Sequential Read | Up to 5,300 MB/s |
| Sequential Write | Up to 1,900 MB/s |
| Operating Temperature | 0 °C to 70 °C |
| Power-Loss Protection | Supported |
Compare Models in This Series
4 models — comparing key specifications to help with model selection.
| Model | Interface | Form Factor | Sequential Read | Sequential Write | Capacity | DWPD |
|---|---|---|---|---|---|---|
| D7-P5520 | PCIe 4.0 X4 | 2.5 inch U.2 | Up to 5,300 MB/s | Up to 1,900 MB/s | 1.92TB | 1 DWPD |
| PM9D3a | PCIe 4.0 X4 | 2.5 inch U.2 | Up to 6,400 MB/s | Up to 1,400 MB/s | 960GB–15.36TB | 1 drive writes per day over 5years |
| D7-P5620 | PCIe 4.0 X4 | 2.5 inch U.2 | Up to 5,300 MB/s | Up to 1,900 MB/s | 1.6TB–6.4TB | 3 DWPD |
| PM9A3 | PCIe 4.0 X4 | 2.5 inch U.2 | Up to 6500 MB/s | Up to 1500 MB/s | 960GB–15.36TB | 1 DWPD |
DWPD means full-drive writes per day. PM9D3a's 1 DWPD value is stated under the five-year condition in the approved source.
